Brightsoft Interactive Flat Panel
IWB8636-VS
4K Ultra HD │ 40 Interactive Points │ Wireless Slideshow│ QR Sharing
|
3840 x 2160 |
Dual Operating System |
Android 13.0 |
8+128GB |
Split screen |
Smart whiteboard |
Wireless Slideshow |
Scan QR to share |
Zero Bonding Interactive Technology for a Smooth Writing Experience IWB8636-VS
- Supports 2 different color writing heads
- Support hand deletion, 2-finger zoom in, drag and drop to move whiteboard content easily, and many other features.
- Scan the QR code to get the content on the meeting screen to the phone
| 20 touch points
IR Touch |
±1mm
Handwriting accuracy |
≤ 3mm
Smallest size |
 |
Split screen IWB8636-VS
|
Scan QR CodeHelps save content quicklyScan the QR code with your phone to save the contents |
 |
 |
4K UHD image qualitySharp display to every detailFull display of 4K image quality helps to display |
Anti-glare tempered glassHelps to see clearly from all anglesAnti-glare glass for clear visibility from all angles |
 |
Wireless content projection
Share everything to the screen need to use a connection cord
- Wirelessly project from 9 devices to the screen at the same time
- Supports a variety of slideshows on any device (Android, Windows, iOS, MacOS)

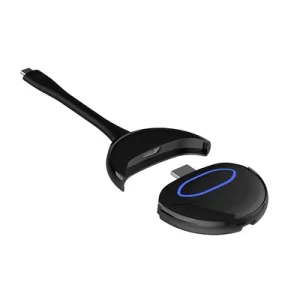

- Variety of projection methods (Dongle, Miracast, Chrome Cast, Airplay,…)
Unlimited online meetings
- The built-in CH Play Store helps you set up and meet online with any app
(Including Zoom Meeting, Microsoft Teams, Google Meet,…) - 48 MP camera for clear image quality and 4 Frame features
- Intelligent AI image
- Built-in 8 omnidirectional microphones to record 8 meters with Echo, Noise Reduction technology,…
 |
 |
 |
 |
Dual Operating SystemDouble the performance
|
 |
 |
Diverse toolkitEasily meet all needsDiverse set of tools and features to meet all the needs of use (including Eye Protection, Lock Security, Interactive Keys and Multi Other types of tools and features |
Size options
Specifications IWB8636-VS
| Panels | |
| Dimension | 86 inches |
| Response time | 6.5ms |
| Aspect ratio | 16:9 |
| Display Area | 1896（H）×1067 （V）mm |
| Resolution | 3840(H)×2160(V) |
| Pixel Pitch | 1896（H）×1067 （V）mm |
| Frequency | 60Hz |
| Chroma | 1.07B (10bit) |
| Color gamut | 72% |
| Contrast | 6000:1 |
| Perspective | 178°(H/V) |
| Backlight | DLED |
| Panel Type | TFT LCD |
| Brightness | 350cd/m2 |
| Usage time | ≥60000 hours |
| Tempered glass | |
| Technology | Zero Bonding |
| Thickness | 4mm |
| Hardness | 7H (Mohs – 7 levels) |
| Glass Type | Anti-glare |
| Sound | |
| Soundtrack | 2.0 |
| Power | 2×16W |
| Touch Parameters | |
| Sensor Technology | Infrared (IR) Induction Technology |
| System Support | Window11/Windows10/Windows8/Windows7/Windows XP/Android/Linux/Mac OS X/Chrome |
| Number of touch points | 20 points (40 touch points when using Windows OPS) |
| Smallest Identification | 2mm |
| Touch Method | Infrared pen, finger |
| Touch response time | ≤5ms |
| Writing accuracy | ±1mm |
| Writing height | ≤3mm |
| Show 2 pen tips | Two colors display |
| Touch Durability | Over 60 million times |
| Operating System | |
| Chipset | T982 |
| Operating System | Android 13.0 |
| Frequency | 1.9GHz |
| CPU | Quad Core A55 |
| GPU | Mali G52MP2 |
| RAM | 4GB |
| ROM | 32GB |
| Language | English, Arabic, Spanish, French, Italian, Japanese, Portuguese, Russian, Korean, German, Simplified Chinese, Traditional Chinese. |
| Supports 2 operating systems | Android and Windows |
| Camera & Microphone | |
| Camera | 48MP |
| AI features | Read up to 5 types of hand gestures to change AI frame mode |
| AI Frame Mode | Full View
Self-Aligning Mode (Best Vision) Single-target frame tracking mode (Gesture Following) Speaker Following Mode Portrait Gallery Mode for Everyone in the Room (Divi-Screen) |
| Number of Microphones | Array of 8 top-edge mics |
| Mic Type | Omnidirectional |
| Recording Distance | 8m |
| Technology | Beamforming |
| Smart Features | Auto Noise Filter, Auto Increase Speech Volume |
| Bluetooth | |
| Version | 5.2 |
| Operating Frequency | 2.4GHz |
| Connection Distance | 0~10m |
| Wifi | |
| Version | 802.11a/b/g/n/ac/ax (WIFI 6) |
| Operating Frequency | 2.4GHz/5GHz |
| Connection Distance | 0~10m |
| Ports & Front buttons | |
| USB 3.0 | 2 |
| HDMI in | 1 |
| Touch | 1 |
| USB Type-C (Full Functions) | 1 |
| Power Button | 1 |
| Side and Bottom buttons | |
| HDMI IN | 2 |
| USB 3.0 | 2 |
| USB 2.0 | 1 |
| TOUCH | 1 |
| VGA IN | 1 |
| AUDIO IN | 1 |
| USB Type-C (Full functions) | 1 |
| RS232 | 1 |
| RJ45 IN | 1 |
| RJ45 OUT | 1 |
| DP | 1 |
| OPTICAL OUT | 1 |
| LINE OUT | 1 |
| HDMI OUT | 1 |
| Supported formats | |
| Video Format | AVI (.avi), MPEG-2 TS Transport Stream (.ts), MPEG File Format (.mpeg), MPEG-4 Part 14 (MP4), QuickTime (.mov), BDAV MPEG-2 transport stream (.m2ts), Matroska (.mkv), Flash Video (.flv), Video OBject (.vob), DAT (.dat), Advanced Stream Format (.asf), Flash Video, Based On MPEG-4 Part 12 (.f4v), 3gp, tp, webm, .vp9 (maximum resolution support 4K~60FPS) |
| Audio Format | Windows Media Audio (.wma), MPEG Audio Layer III (.mp3), Wave Audio Files (.wav), OGG Vobis (.ogg), Free Lossless AudioCodec (.flac), APE (.ape), ALAC(.alac), Pulse-Code Modulation (PCM), Dolby Digital (DD)/AC-3, Dolby Digital Plus (DD)/E-AC-3 (supports audio quality up to 3024 kbps) |
| Image Format | png, jpeg, bmp, gif (supports maximum image quality 8K*8K) |
| Power Supply | |
| Source | 220V~ 50Hz 1.5A |
| Largest consumption rate gate | 330W |
| Standby power consumption | ≤0.5W |
| Dimension | |
| Dimension | 1952.96*1167.77*87.18mm |
| Packaging Dimensions | 2120*220*1325mm |
| Screen thickness + mount | 123.18mm（2163） |
| Vesa Standard (LxH) | 800×400mm |
| Wall Mounting Screw Specifications | M8×25mm |
| Accessories in the box | |
| Remote | ×1 |
| Power Cord | ×1 |
| Stylus | ×1 |
| Wall mount | ×1 |
| User Manual | ×1 |
| Operating Environment | |
| Operating Temperature | 0°C~40°C |
| Operating humidity | 10%~90%RH |
| Storage Temperature | -20°C~60°C |
| Storage Humidity | 10%~90%RH |
| Working Height | <5000m |
| Origin and warranty | |
| Origin | Assembled in Vietnam or OEM according to ISO standards |
| Warranty | Warranty in Vietnam |
| Certify | ISO 9001:2015, ISO 45001:2018, ISO 14001:2015, ISO/IEC 27001:2013. |
| OPS Options | |
| Parameter | 120*180*30mm, 80pin
195mm*180mm*30mm 195mm*180mm*42mm |
| Built-in features and software | |
| Compatible Software | DMS, CH Play, Google Meet, Zoom, Microsoft Teams, White Board, Web Browser |
| Whiteboard software | Recognize 2 writing heads with 2 different ink colors
Identify shapes and writing with regular strokes to convert to standard geometry and typography Share current content on your phone whiteboard via QR Insert Files and Notes directly onto the whiteboard Split the whiteboard in half into 2 different boards with 2 separate tool sets.
|
| Wireless Screen Sharing | 4K quality wireless projection
Supports splitting and slideshow up to 9 devices at the same time Supports wireless projection through: – Proprietary software – Airplay (for iOS, MacOS devices) – Miracast (for Windows, Android devices) – Chrome Cast (on the Google Chrome app) – Dongle (plug and share) (Optional Accessory)
|
| BYOM Function | Supports extracting camera, microphone, and speaker streams and sharing screen content with just 1 of the following connections:
– USB type-C port (wired) – Airline app (wireless) – Dongle (Wireless) (Optional Accessory) |
| Screen multitasking | Split screen: Split the frame in half to display 2 applications at the same time.
PIP: create a small frame within a large frame to display the content on the screen and another image stream |
| Cloud Drive | Capable of connecting to Google Drive and One Drive to exchange, save, and retrieve files |
| Universal USB Type-C port | Simply connect to your computer’s USB port to perform all tasks: Data Transfer, Image Slideshow, Camera Stream Grab, mic, speaker, touchback signal transmission, power supply (Up to 65W) |
| Smart Eye Protection Technology | Detects and automatically adjusts the brightness when it detects a person standing nearby and increases the brightness automatically when in slideshow mode |
| Notes | Take notes directly on whatever is on the screen, then can be inserted into a whiteboard, saved, or shared |
| Welcome screen | Built-in welcome screen app with a variety of pre-designed themes for guest welcome interface, event background |
| Toolkit | Built-in toolkit of up to 16 tools, utilities: Note, Camera, File Transfer, Screen Recording, Screen Capture, Countdown Timer, Stopwatch, Screen Freeze, Voting Tool, Solar Calendar, Interactive Key, Arithmetic Calculator, Media Runner, Weather, Pips. |
